Description
PRODUCT CODE
LIGL01R – Passage
LIGL SERIES – GLASS DOOR LOCKS
Glass Door Locks for internal glass door assemblies
PRODUCT CODE – HOW TO ORDER
| LIGL | (LF) | R | (LH) | (SO) |
| 01 | 001 | SB | ||
| 02 | 003 | SP |
(LF) LOCK FUNCTION
01 – Passage
02 – Entrance
(LH) Lever Handle

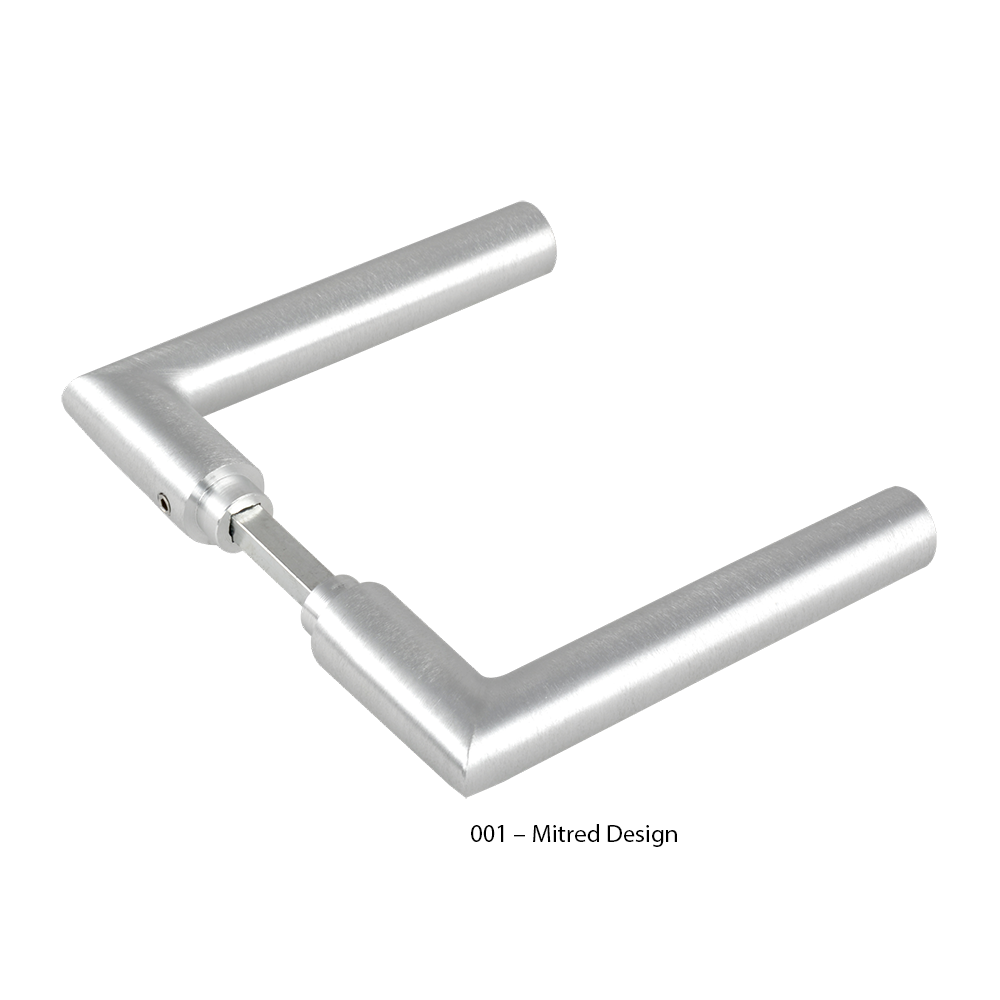

001 – Mitred

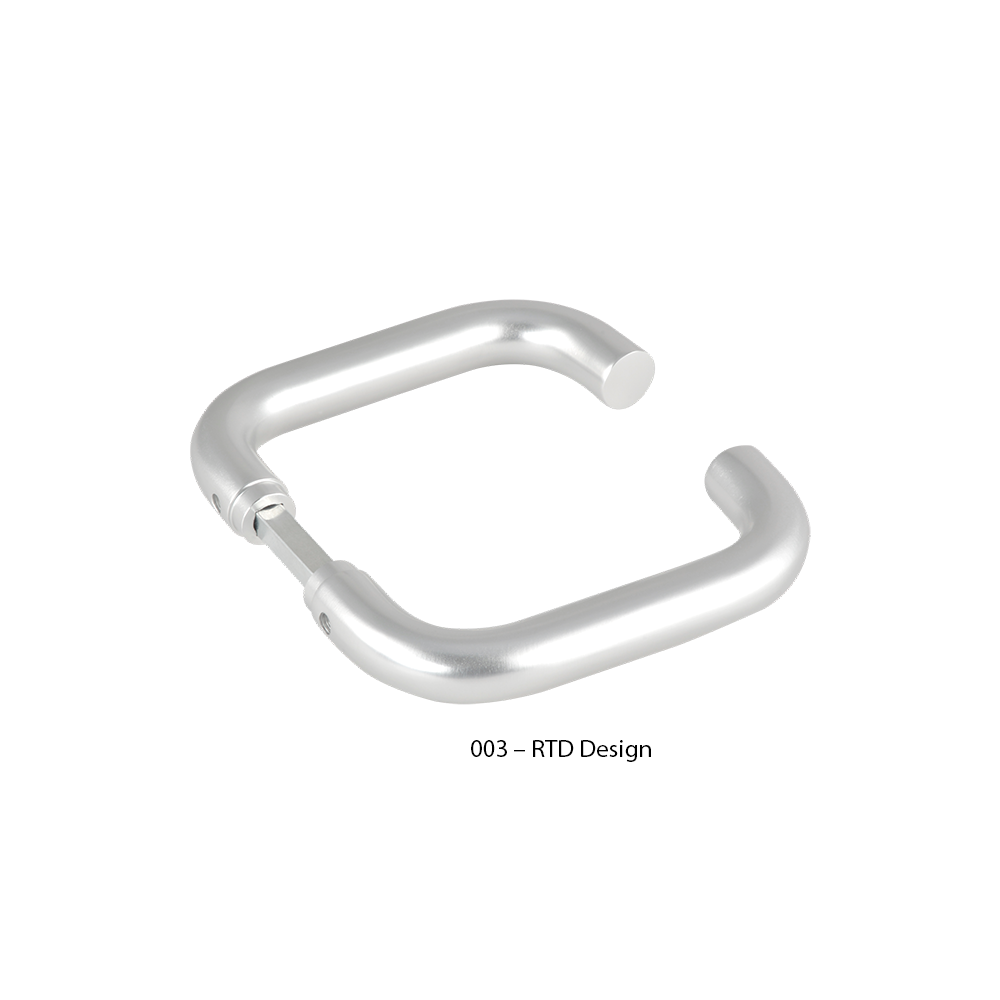

003 – RTD
(SO) Strike Option

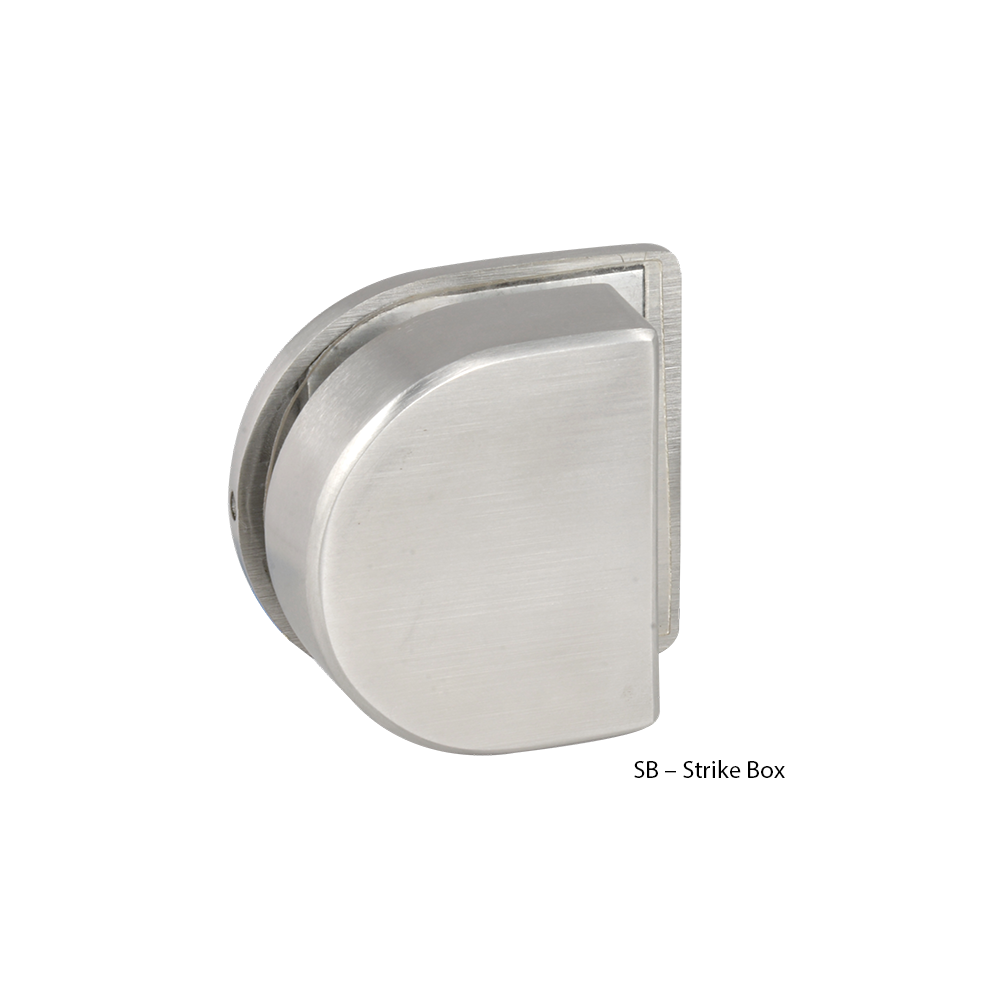

SB – Strike Box
SP – Strike Plate
Example: LIGL02R003SP for Entrance function round design with RTD lever handle and strike plate
SPECIFICATION
Glass door lock with Passage and Entrance function
Optional lever handle designs
Silent latch with cushioning for quiet operation
Suitable for Glass to Glass with SB strike box and Glass to Wall with SP strike plate
To suit glass thickness of 8-12mm
Manufactured from Stainless steel SS304 grade
Supplied with suitable screws and fixings
FINISHES
| SSS | Satin Stainless Steel |
| PSS | Polished Stainless Steel |
| BLK | Black |
